opgl_utils.cpp File Reference

OpenGL utility functions for neuron visualization. More...

#include "opgl_utils.h"
#include "globals.h"

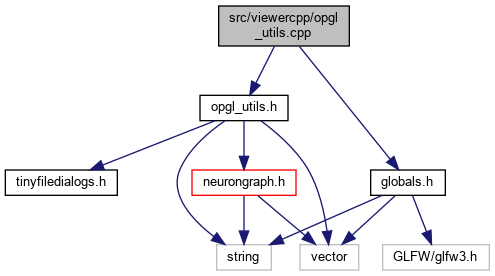

Include dependency graph for opgl_utils.cpp:

Functions
void	printHelpText ()
	Prints the help text to the standard output. More...
std::vector< SWCNode >	loadSWC (const std::string &filename)
	Loads a neuron morphology from an SWC or UGX file. More...
void	computeBounds (const std::vector< SWCNode > &nodes, double &minX, double &maxX, double &minY, double &maxY, double &minZ, double &maxZ, double &centerX, double &centerY, double &centerZ, double &radius)
	Computes the bounding box and center of a set of nodes. More...
void	openNeuronFile (std::vector< SWCNode > &nodes, double &minX, double &maxX, double &minY, double &maxY, double &minZ, double &maxZ, double &centerX, double &centerY, double &centerZ, double &radius)
	Opens a file dialog and loads a neuron morphology file. More...

Variables
std::string	currentLoadedFile = "."
	Path to the currently loaded neuron file. More...

Detailed Description

OpenGL utility functions for neuron visualization.

This file contains utility functions for handling OpenGL-related operations in the neuron visualization application. It provides functionality for loading neuron data from files, computing spatial bounds, and managing the visualization state.

Key features:

• Loading and parsing SWC/UGX neuron files
• Computing spatial bounds and center of neuron morphologies
• Managing file I/O for neuron data
• Integration with the main visualization pipeline

The implementation handles various neuron file formats and provides utility functions to support the OpenGL rendering pipeline.

Author

CPPNeuronMesher Team

Date

2025-07-27

Version

1.0

Copyright

MIT License

See also

globals.h for shared state variables

opgl_utils.h for function declarations

Function Documentation

computeBounds()

void computeBounds	(	const std::vector< SWCNode > &	nodes,
		double &	minX,
		double &	maxX,
		double &	minY,
		double &	maxY,
		double &	minZ,
		double &	maxZ,
		double &	centerX,
		double &	centerY,
		double &	centerZ,
		double &	radius
	)

Computes the bounding box and center of a set of nodes.

Computes the spatial bounds and center of a set of nodes.

Parameters

[in]	nodes	Vector of SWC nodes to compute bounds for
[out]	minX	Minimum X coordinate of the bounding box
[out]	maxX	Maximum X coordinate of the bounding box
[out]	minY	Minimum Y coordinate of the bounding box
[out]	maxY	Maximum Y coordinate of the bounding box
[out]	minZ	Minimum Z coordinate of the bounding box
[out]	maxZ	Maximum Z coordinate of the bounding box
[out]	centerX	X coordinate of the bounding box center
[out]	centerY	Y coordinate of the bounding box center
[out]	centerZ	Z coordinate of the bounding box center
[out]	radius	Radius of the bounding sphere (half the maximum dimension)

This function calculates the axis-aligned bounding box, center point, and bounding sphere radius for a set of 3D points represented by SWC nodes. The results are returned through reference parameters.

The function also prints the computed bounds and center to the console for debugging purposes.

Note

If the input vector is empty, the function returns immediately

The radius is defined as half the maximum dimension of the bounding box

See also

openNeuronFile() for a typical usage example

Here is the caller graph for this function:

loadSWC()

std::vector<SWCNode> loadSWC

(

const std::string &

filename

)

Loads a neuron morphology from an SWC or UGX file.

Loads neuron data from an SWC file.

Parameters

[in]

filename

Path to the SWC or UGX file to load

Returns

std::vector<SWCNode> Vector of SWC nodes representing the neuron

This function loads a neuron morphology from the specified file and returns its nodes as a vector of SWCNode objects. It supports both SWC and UGX file formats and performs preprocessing on the loaded data.

The function:

1. Reads the neuron data using NeuronGraph's readFromFileUGXorSWC()
2. Applies preprocessing to the loaded nodes
3. Converts the node map to a vector for rendering

Note

The function modifies the global graph object

Preprocessing includes validation and cleanup of the neuron structure

Exceptions

std::runtime_error

if the file cannot be read or parsed

See also

NeuronGraph::readFromFileUGXorSWC()

NeuronGraph::preprocess()

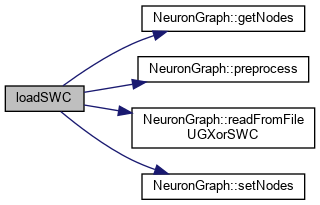

Here is the call graph for this function:

Here is the caller graph for this function:

openNeuronFile()

void openNeuronFile	(	std::vector< SWCNode > &	nodes,
		double &	minX,
		double &	maxX,
		double &	minY,
		double &	maxY,
		double &	minZ,
		double &	maxZ,
		double &	centerX,
		double &	centerY,
		double &	centerZ,
		double &	radius
	)

Opens a file dialog and loads a neuron morphology file.

Opens a file dialog to load a neuron file and updates the view.

Parameters

[out]	nodes	Vector to store the loaded SWC nodes
[out]	minX	Minimum X coordinate of the bounding box
[out]	maxX	Maximum X coordinate of the bounding box
[out]	minY	Minimum Y coordinate of the bounding box
[out]	maxY	Maximum Y coordinate of the bounding box
[out]	minZ	Minimum Z coordinate of the bounding box
[out]	maxZ	Maximum Z coordinate of the bounding box
[out]	centerX	X coordinate of the bounding box center
[out]	centerY	Y coordinate of the bounding box center
[out]	centerZ	Z coordinate of the bounding box center
[out]	radius	Radius of the bounding sphere

This function opens a file dialog for the user to select an SWC or UGX file, loads the selected file, and computes the spatial bounds of the neuron. The function updates both the provided output parameters and the global state.

The function performs the following steps:

1. Shows a file dialog for selecting SWC or UGX files
2. Loads the selected file using loadSWC()
3. Updates the global currentNodes and currentLoadedFile variables
4. Computes the spatial bounds and center of the loaded neuron
5. Resets the refinement delta to its default value

Note

Uses tinyfiledialogs for the file dialog

Prints diagnostic information to the console

See also

loadSWC() for the actual file loading implementation

computeBounds() for the bounds calculation

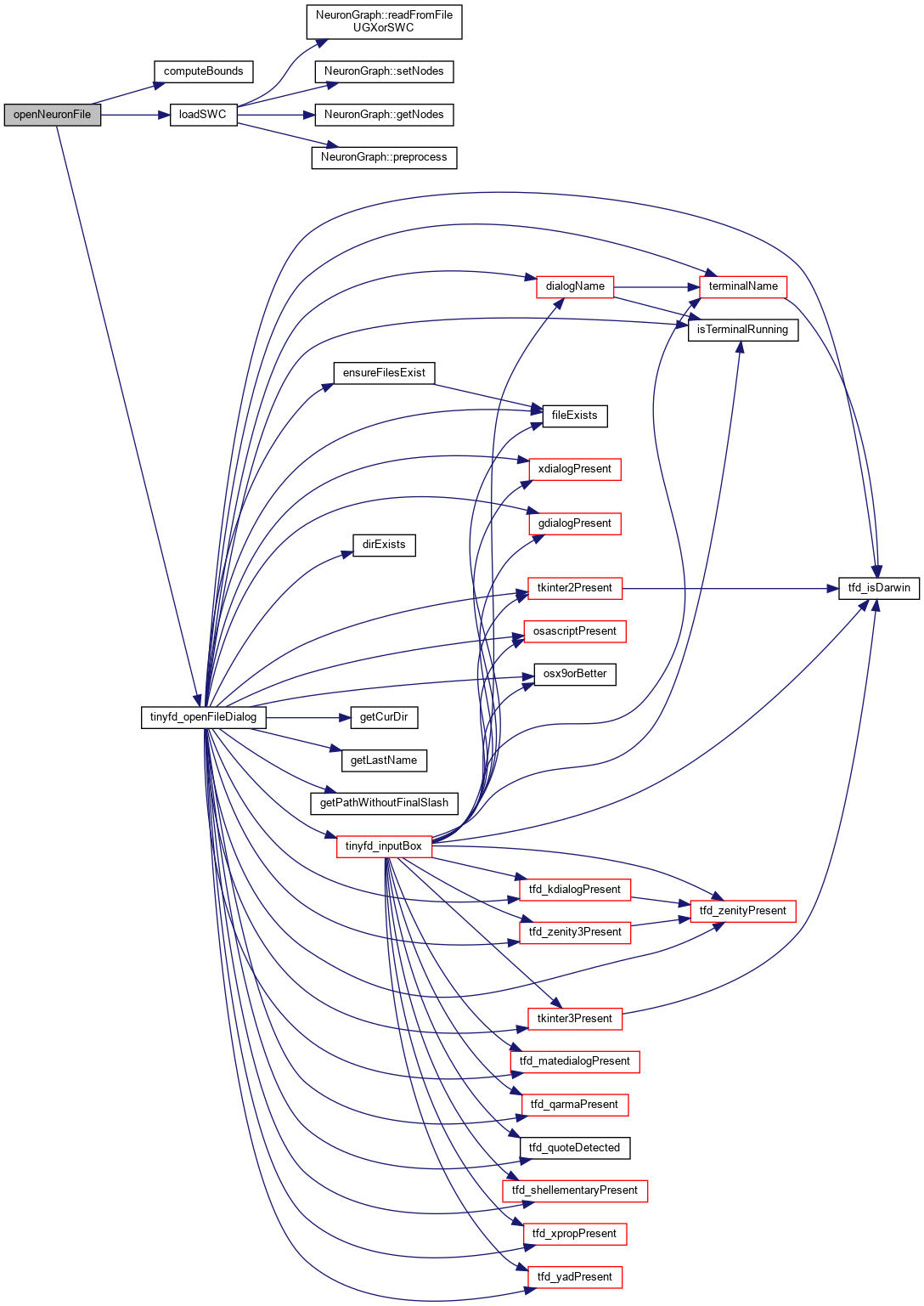

Here is the call graph for this function:

Here is the caller graph for this function:

printHelpText()

void printHelpText

(

)

Prints the help text to the standard output.

Prints keyboard and mouse controls to the console.

Displays the application's keyboard and mouse controls to the console. The help text is defined as a global string constant in globals.h.

Note

The help text includes controls for view manipulation, file operations, and rendering modes.

See also

globals.h for the help text definition

Here is the caller graph for this function:

Variable Documentation

currentLoadedFile

std::string currentLoadedFile = "."

Path to the currently loaded neuron file.

Path to the currently loaded SWC file.
