OpenGL utility functions for neuron visualization. More...

#include <vector>
#include <string>
#include "neurongraph.h"
#include "tinyfiledialogs.h"

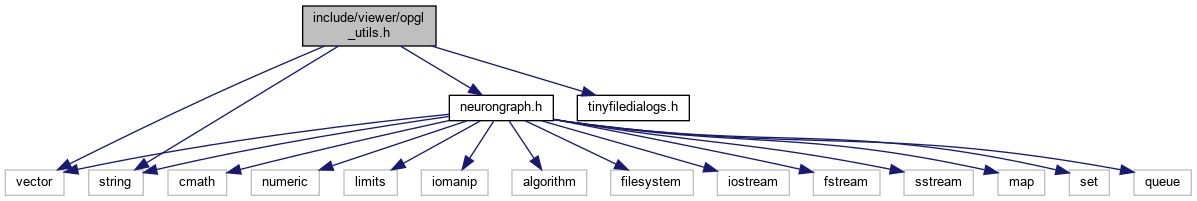

Include dependency graph for opgl_utils.h:

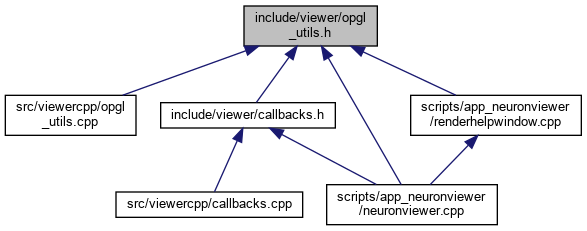

This graph shows which files directly or indirectly include this file:

Functions
std::vector< SWCNode >	loadSWC (const std::string &filename)
	Loads neuron data from an SWC file. More...

void	computeBounds (const std::vector< SWCNode > &nodes, double &minX, double &maxX, double &minY, double &maxY, double &minZ, double &maxZ, double &centerX, double &centerY, double &centerZ, double &radius)
	Computes the spatial bounds and center of a set of nodes. More...

void	openNeuronFile (std::vector< SWCNode > &nodes, double &minX, double &maxX, double &minY, double &maxY, double &minZ, double &maxZ, double &centerX, double &centerY, double &centerZ, double &radius)
	Opens a file dialog to load a neuron file and updates the view. More...

void	printHelpText ()
	Prints keyboard and mouse controls to the console. More...

Variables
std::string	currentLoadedFile
	Path to the currently loaded SWC file. More...

Detailed Description

OpenGL utility functions for neuron visualization.

This header provides utility functions for OpenGL-based visualization of neuron morphologies, including file I/O, bounds computation, and help text display. These utilities handle the core functionality for loading and preparing neuron data for rendering.

Author: CPPNeuronMesher Team

Date: 2025-07-27

Version: 1.0

Copyright: MIT License

Function Documentation

◆ computeBounds()

void computeBounds	(	const std::vector< SWCNode > &	nodes,
		double &	minX,
		double &	maxX,
		double &	minY,
		double &	maxY,
		double &	minZ,
		double &	maxZ,
		double &	centerX,
		double &	centerY,
		double &	centerZ,
		double &	radius
	)

Computes the spatial bounds and center of a set of nodes.

Calculates the axis-aligned bounding box, center point, and maximum radius of a collection of SWC nodes. This is used for camera positioning and scaling.

Parameters

[in]	nodes	Vector of SWC nodes to analyze
[out]	minX	Minimum X coordinate of all nodes
[out]	maxX	Maximum X coordinate of all nodes
[out]	minY	Minimum Y coordinate of all nodes
[out]	maxY	Maximum Y coordinate of all nodes
[out]	minZ	Minimum Z coordinate of all nodes
[out]	maxZ	Maximum Z coordinate of all nodes
[out]	centerX	X coordinate of the center point
[out]	centerY	Y coordinate of the center point
[out]	centerZ	Z coordinate of the center point
[out]	radius	Maximum distance from center to any node

Note: All output parameters are set to 0 if the input vector is empty

Computes the spatial bounds and center of a set of nodes.

Parameters

[in]	nodes	Vector of SWC nodes to compute bounds for
[out]	minX	Minimum X coordinate of the bounding box
[out]	maxX	Maximum X coordinate of the bounding box
[out]	minY	Minimum Y coordinate of the bounding box
[out]	maxY	Maximum Y coordinate of the bounding box
[out]	minZ	Minimum Z coordinate of the bounding box
[out]	maxZ	Maximum Z coordinate of the bounding box
[out]	centerX	X coordinate of the bounding box center
[out]	centerY	Y coordinate of the bounding box center
[out]	centerZ	Z coordinate of the bounding box center
[out]	radius	Radius of the bounding sphere (half the maximum dimension)

This function calculates the axis-aligned bounding box, center point, and bounding sphere radius for a set of 3D points represented by SWC nodes. The results are returned through reference parameters.

The function also prints the computed bounds and center to the console for debugging purposes.

Note: If the input vector is empty, the function returns immediately; The radius is defined as half the maximum dimension of the bounding box

See also: openNeuronFile() for a typical usage example

Here is the caller graph for this function:

◆ loadSWC()

std::vector<SWCNode> loadSWC ( const std::string & filename )

Loads neuron data from an SWC file.

Parses an SWC (Standardized Waveform Container) file containing neuron morphology data and returns a vector of SWCNode objects.

Parameters

filename Path to the SWC file to load

Returns: std::vector<SWCNode> Vector of nodes representing the neuron morphology

Exceptions

std::runtime_error If the file cannot be opened or is malformed

Note: The SWC format is a standard format for representing neuron morphologies. Each line in the file represents a point in the neuron structure.

See also: http://www.neuronland.org/NLMorphologyConverter/MorphologyFormats/SWC/Spec.html

Loads neuron data from an SWC file.

Parameters

[in] filename Path to the SWC or UGX file to load

Returns: std::vector<SWCNode> Vector of SWC nodes representing the neuron

This function loads a neuron morphology from the specified file and returns its nodes as a vector of SWCNode objects. It supports both SWC and UGX file formats and performs preprocessing on the loaded data.

The function:

Reads the neuron data using NeuronGraph's readFromFileUGXorSWC()
Applies preprocessing to the loaded nodes
Converts the node map to a vector for rendering

Note: The function modifies the global graph object; Preprocessing includes validation and cleanup of the neuron structure

Exceptions

std::runtime_error if the file cannot be read or parsed

See also: NeuronGraph::readFromFileUGXorSWC(); NeuronGraph::preprocess()

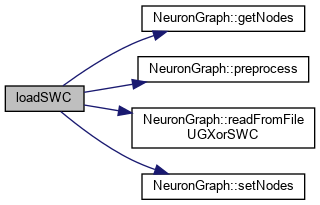

Here is the call graph for this function:

Here is the caller graph for this function:

◆ openNeuronFile()

void openNeuronFile	(	std::vector< SWCNode > &	nodes,
		double &	minX,
		double &	maxX,
		double &	minY,
		double &	maxY,
		double &	minZ,
		double &	maxZ,
		double &	centerX,
		double &	centerY,
		double &	centerZ,
		double &	radius
	)

Opens a file dialog to load a neuron file and updates the view.

Displays a file open dialog to the user and loads the selected SWC file. Updates the provided node container and computes the new spatial bounds.

Parameters

[out]	nodes	Vector to store the loaded nodes
[out]	minX	Minimum X coordinate (updated after loading)
[out]	maxX	Maximum X coordinate (updated after loading)
[out]	minY	Minimum Y coordinate (updated after loading)
[out]	maxY	Maximum Y coordinate (updated after loading)
[out]	minZ	Minimum Z coordinate (updated after loading)
[out]	maxZ	Maximum Z coordinate (updated after loading)
[out]	centerX	X coordinate of the center (updated after loading)
[out]	centerY	Y coordinate of the center (updated after loading)
[out]	centerZ	Z coordinate of the center (updated after loading)
[out]	radius	Maximum radius from center (updated after loading)

Returns: True if a file was successfully loaded, false otherwise

Note: Uses tinyfiledialogs for cross-platform file dialog support; Updates currentLoadedFile on successful load

Opens a file dialog to load a neuron file and updates the view.

Parameters

[out]	nodes	Vector to store the loaded SWC nodes
[out]	minX	Minimum X coordinate of the bounding box
[out]	maxX	Maximum X coordinate of the bounding box
[out]	minY	Minimum Y coordinate of the bounding box
[out]	maxY	Maximum Y coordinate of the bounding box
[out]	minZ	Minimum Z coordinate of the bounding box
[out]	maxZ	Maximum Z coordinate of the bounding box
[out]	centerX	X coordinate of the bounding box center
[out]	centerY	Y coordinate of the bounding box center
[out]	centerZ	Z coordinate of the bounding box center
[out]	radius	Radius of the bounding sphere

This function opens a file dialog for the user to select an SWC or UGX file, loads the selected file, and computes the spatial bounds of the neuron. The function updates both the provided output parameters and the global state.

The function performs the following steps:

Shows a file dialog for selecting SWC or UGX files
Loads the selected file using loadSWC()
Updates the global currentNodes and currentLoadedFile variables
Computes the spatial bounds and center of the loaded neuron
Resets the refinement delta to its default value

Note: Uses tinyfiledialogs for the file dialog; Prints diagnostic information to the console

See also: loadSWC() for the actual file loading implementation; computeBounds() for the bounds calculation

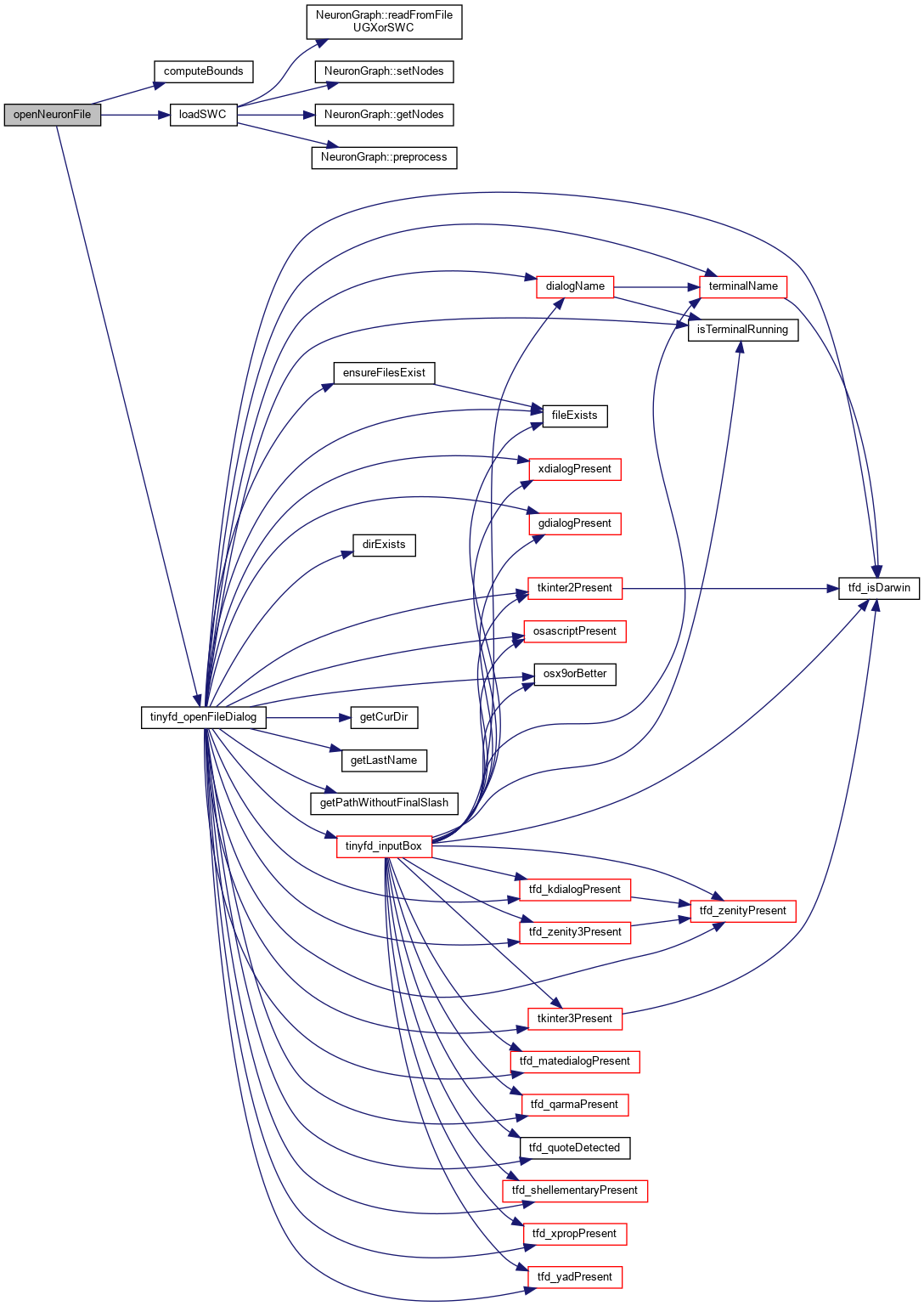

Here is the call graph for this function:

Here is the caller graph for this function:

◆ printHelpText()

void printHelpText ( )

Prints keyboard and mouse controls to the console.

Displays a help message listing all available keyboard shortcuts and mouse controls for the neuron viewer application.

Note: This function is typically called when the application starts or when the user presses the 'H' key.

Prints keyboard and mouse controls to the console.

Displays the application's keyboard and mouse controls to the console. The help text is defined as a global string constant in globals.h.

Note: The help text includes controls for view manipulation, file operations, and rendering modes.

See also: globals.h for the help text definition

Here is the caller graph for this function:

Variable Documentation

◆ currentLoadedFile

std::string currentLoadedFile

extern

Path to the currently loaded SWC file.

Stores the full path to the most recently loaded SWC file. Empty string if no file has been loaded yet.

Path to the currently loaded SWC file.
