Class for representing and processing neuron morphology graphs. More...

#include <neurongraph.h>

Public Member Functions
	NeuronGraph ()
	Default constructor. More...

	NeuronGraph (std::string filename)
	Constructor that loads a neuron from file. More...

	NeuronGraph (const std::map< int, SWCNode > &nodeSet)
	Constructs a NeuronGraph from an existing set of nodes. More...

void	addNode (const SWCNode &node)
	Adds a single node to the graph. More...

void	setNodes (const std::map< int, SWCNode > &nodeSet)
	Replaces the current set of nodes in the graph. More...

bool	isTopologicallySorted (const std::map< int, SWCNode > &nodeSet) const
	Checks if a set of nodes is topologically sorted. More...

bool	isTopologicallySorted () const

std::map< int, SWCNode >	topologicalSort (const std::map< int, SWCNode > &nodeSet) const
	Sorts nodes topologically using Kahn's algorithm. More...

std::map< int, SWCNode >	topologicalSort () const

bool	hasSomaSegment (const std::map< int, SWCNode > &nodeSet) const
	Checks if the node set contains a soma segment. More...

bool	hasSomaSegment () const

bool	isSomaMissing (const std::map< int, SWCNode > &nodeSet) const
	Checks if the node set is missing a soma. More...

bool	isSomaMissing () const

std::map< int, SWCNode >	removeSomaSegment (const std::map< int, SWCNode > &inputNodes) const
	Removes the soma segment from a set of nodes. More...

std::map< int, SWCNode >	removeSomaSegment () const

std::map< int, SWCNode >	setSoma (const std::map< int, SWCNode > &nodeSet) const
	Adds a soma node if none exists. More...

std::map< int, SWCNode >	setSoma () const

std::map< int, SWCNode >	preprocess (const std::map< int, SWCNode > &nodeSet) const
	Applies standard preprocessing steps to a set of nodes. More...

void	readFromFile (const std::string &filename)
	Reads neuron data from an SWC file. More...

void	writeToFile (const std::map< int, SWCNode > &nodeSet, const std::string &filename)
	Writes a set of nodes to an SWC file. More...

void	writeToFile (const std::string &filename)

void	readFromFileUGX (const std::string &filename)
	Reads neuron data from a UGX file. More...

void	readFromFileUGXorSWC (const std::string &filename)
	Reads a neuron file, automatically detecting the format. More...

void	writeToFileUGX (const std::map< int, SWCNode > &nodeSet, const std::string &filename)
	Writes a set of nodes to a UGX file. More...

void	writeToFileUGX (const std::string &filename)

void	swc2ugx (const std::string &inputfile, const std::string &outputfile)
	Converts an SWC file to UGX format. More...

void	ugx2swc (const std::string &inputfile, const std::string &outputfile)
	Converts a UGX file to SWC format. More...

int	numberOfNodes ()
	Returns the number of nodes in the graph. More...

int	numberOfEdges ()
	Returns the number of edges in the graph. More...

auto	getNodes ()
	Returns a copy of all nodes in the graph. More...

std::map< int, SWCNode >	splitEdges (const std::map< int, SWCNode > &nodeSet) const
	Splits all edges in the graph by inserting midpoint nodes. More...

std::map< int, SWCNode >	splitEdges () const

std::vector< std::map< int, SWCNode > >	splitEdgesN (const std::map< int, SWCNode > &nodeSet, int N) const
	Applies edge splitting N times recursively. More...

std::vector< std::map< int, SWCNode > >	splitEdgesN (int N) const

std::map< int, std::map< int, SWCNode > >	getTrunks (const std::map< int, SWCNode > &nodeSet, bool resetIndex=false) const
	Extracts trunk segments from a neuron morphology. More...

std::map< int, std::map< int, SWCNode > >	getTrunks (bool resetIndex=false) const

std::map< int, int >	getTrunkParentMap (const std::map< int, SWCNode > &nodeSet, const std::map< int, std::map< int, SWCNode >> &trunkNodeSets) const
	Creates a mapping from trunk IDs to their parent trunk IDs. More...

std::map< int, SWCNode >	assembleTrunks (const std::map< int, std::map< int, SWCNode >> &trunkNodeSets) const
	Combines multiple trunks into a single node set. More...

std::map< int, SWCNode >	assembleTrunks (const std::map< int, std::map< int, SWCNode >> &resampledTrunks, const std::map< int, int > &trunkParentMap)
	Combines resampled trunks using a parent-child relationship map. More...

std::map< int, SWCNode >	linearSplineResampleTrunk (const std::map< int, SWCNode > &trunk, double &delta) const
	Resamples a single trunk using linear interpolation. More...

std::map< int, std::map< int, SWCNode > >	allLinearSplineResampledTrunks (std::map< int, std::map< int, SWCNode >> &trunks, double &delta) const
	Resamples all trunks using linear interpolation. More...

std::map< int, SWCNode >	cubicSplineResampleTrunk (const std::map< int, SWCNode > &trunk, double &delta) const
	Resamples a single trunk using cubic spline interpolation. More...

std::map< int, std::map< int, SWCNode > >	allCubicSplineResampledTrunks (std::map< int, std::map< int, SWCNode >> &trunks, double &delta) const
	Resamples all trunks using cubic spline interpolation. More...

std::map< int, std::map< int, SWCNode > >	generateRefinements (const std::map< int, SWCNode > &nodeSet, double &delta, int &N, std::string &method)
	Generates multiple levels of refined neuron morphologies. More...

std::map< int, std::map< int, SWCNode > >	generateRefinements (double &delta, int &N, std::string &method)

Private Member Functions
std::map< int, std::vector< int > >	getNeighborMap (const std::map< int, SWCNode > &nodeSet) const
	Builds a neighbor map from a set of nodes. More...

Private Attributes
std::map< int, SWCNode >	nodes
	Map of node IDs to SWCNode objects. More...

std::map< int, std::vector< int > >	edges
	Adjacency list representation of the neuron graph. More...

Detailed Description

Class for representing and processing neuron morphology graphs.

The NeuronGraph class provides comprehensive functionality for working with neuron morphology data, including file I/O, topological analysis, and geometric processing. It supports both SWC and UGX file formats and includes methods for manipulating and analyzing neuron structures.

Key features:

Reading and writing SWC/UGX files
Topological sorting and validation
Soma detection and processing
Edge splitting and resampling
Trunk extraction and manipulation

Constructor & Destructor Documentation

◆ NeuronGraph() [1/3]

NeuronGraph::NeuronGraph ( )

inline

Default constructor.

Creates an empty NeuronGraph with no nodes or edges.

◆ NeuronGraph() [2/3]

NeuronGraph::NeuronGraph ( std::string filename )

inline

Constructor that loads a neuron from file.

Parameters

[in] filename Path to the SWC or UGX file to load

See also: readFromFileUGXorSWC()

Here is the call graph for this function:

◆ NeuronGraph() [3/3]

NeuronGraph::NeuronGraph ( const std::map< int, SWCNode > & nodeSet )

Constructs a NeuronGraph from an existing set of nodes.

Constructor that initializes a NeuronGraph from a set of SWC nodes.

Parameters

[in]	nodeSet	Map of node IDs to SWCNode objects
	nodeSet	A map containing SWC nodes indexed by their IDs

This constructor creates a new NeuronGraph instance by clearing any existing data and populating the graph with the provided nodes. It automatically builds the parent-child relationships between nodes.

Note: The nodeSet parameter uses structured binding, so the key is ignored (_)

See also: addNode(const SWCNode& node)

Member Function Documentation

◆ addNode()

void NeuronGraph::addNode ( const SWCNode & node )

Adds a single node to the graph.

Adds a single node to the graph and updates edge relationships.

Parameters

[in] node The SWCNode to add

Note: This method is typically used internally by other methods that read or generate node data.

Parameters

node	The SWCNode to be added to the graph

This method adds a node to the internal nodes map and automatically creates the parent-child edge relationship if the node has a valid parent (pid != -1). Root nodes (pid == -1) are added without creating edges.

Note: This method assumes node IDs are unique and will overwrite existing nodes

See also: SWCNode structure for node data format

Here is the caller graph for this function:

◆ allCubicSplineResampledTrunks()

std::map< int, std::map< int, SWCNode > > NeuronGraph::allCubicSplineResampledTrunks	(	std::map< int, std::map< int, SWCNode >> &	trunks,
		double &	delta
	)		const

Resamples all trunks using cubic spline interpolation.

Applies cubic spline resampling to all trunk segments in a neuron morphology.

Parameters

[in,out]	trunks	Map of trunk IDs to their nodes
[in,out]	delta	Target spacing between resampled points (may be adjusted)

Returns: A new map of resampled trunks

Parameters

trunks	Map of trunk segments where each key is a trunk ID and value is a map of node IDs to SWCNodes
delta	Target distance between consecutive nodes in the resampled trunks (in microns)

Returns: std::map<int, std::map<int, SWCNode>> Map of resampled trunks with the same structure as input

This method processes each trunk segment in the input map and applies cubic spline resampling to achieve a smooth and uniform node distribution. The resampling is performed independently on each trunk.

Key features:

Fits a smooth cubic spline through the original nodes of each trunk
Samples points at approximately 'delta' intervals along the spline
Preserves the start and end points of each trunk exactly
Maintains the original topology while improving smoothness
Handles each trunk segment independently

The resampling process involves:

Fitting natural cubic splines to the x, y, and z coordinates separately
Parameterizing the spline by arc length
Sampling new points at approximately 'delta' intervals along the curve

Note: This method produces smoother results than linear interpolation but is more computationally intensive; The actual spacing may vary slightly to ensure the curve is sampled properly

See also: cubicSplineResampleTrunk() for the single-trunk implementation; allLinearSplineResampledTrunks() for a faster but less smooth alternative

Here is the call graph for this function:

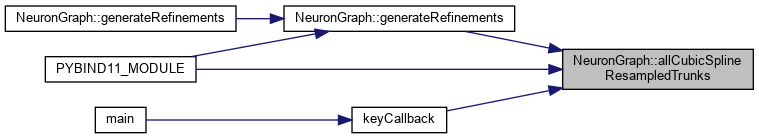

Here is the caller graph for this function:

◆ allLinearSplineResampledTrunks()

std::map< int, std::map< int, SWCNode > > NeuronGraph::allLinearSplineResampledTrunks	(	std::map< int, std::map< int, SWCNode >> &	trunks,
		double &	delta
	)		const

Resamples all trunks using linear interpolation.

Applies linear spline resampling to all trunk segments in a neuron morphology.

Parameters

[in,out]	trunks	Map of trunk IDs to their nodes
[in,out]	delta	Target spacing between resampled points (may be adjusted)

Returns: A new map of resampled trunks

Parameters

trunks	Map of trunk segments where each key is a trunk ID and value is a map of node IDs to SWCNodes
delta	Target distance between consecutive nodes in the resampled trunks (in microns)

Returns: std::map<int, std::map<int, SWCNode>> Map of resampled trunks with the same structure as input

This method processes each trunk segment in the input map and applies linear spline resampling to achieve a more uniform node distribution. The resampling is performed independently on each trunk.

Key features:

Preserves the start and end points of each trunk exactly
Inserts new nodes to achieve approximately 'delta' spacing between points
Maintains the original topology and branching structure
Handles each trunk segment independently

The resampling process involves:

Calculating the total length of each trunk
Determining the number of segments needed based on 'delta'
Linearly interpolating new points along each segment

Note: The actual spacing may vary slightly to ensure the start and end points are preserved exactly; This method is typically used as a preprocessing step before mesh generation

See also: linearSplineResampleTrunk() for the single-trunk implementation; allCubicSplineResampledTrunks() for a smoother but more computationally intensive alternative

Here is the call graph for this function:

Here is the caller graph for this function:

◆ assembleTrunks() [1/2]

std::map< int, SWCNode > NeuronGraph::assembleTrunks	(	const std::map< int, std::map< int, SWCNode >> &	resampledTrunks,
		const std::map< int, int > &	trunkParentMap
	)

Combines resampled trunks using a parent-child relationship map.

Parameters

[in]	resampledTrunks	Map of trunk IDs to their resampled nodes
[in]	trunkParentMap	Map of trunk IDs to their parent trunk IDs

Returns: A single map containing all nodes from all trunks with updated parent references

This version is used when trunk nodes have been resampled and need to be reconnected based on the original topology.

◆ assembleTrunks() [2/2]

std::map< int, SWCNode > NeuronGraph::assembleTrunks ( const std::map< int, std::map< int, SWCNode >> & trunkNodeSets ) const

Combines multiple trunks into a single node set.

Combines multiple trunk segments into a single neuron representation with sequential node IDs.

Parameters

[in] trunkNodeSets Map of trunk IDs to their nodes

Returns: A single map containing all nodes from all trunks

Note: This version preserves the original node IDs

Parameters

trunkNodeSets Map of trunk segments where each key is a trunk ID and value is a map of node IDs to SWCNodes

Returns: std::map<int, SWCNode> A single map of SWC nodes with sequential IDs representing the assembled neuron

This method takes multiple trunk segments and combines them into a single neuron representation while ensuring all node IDs are unique and sequential. It handles the remapping of parent-child relationships to maintain the neuron's topological structure.

Key features:

Renumbers all node IDs sequentially starting from 1
Maintains parent-child relationships between nodes
Handles duplicate nodes across different trunks (uses first occurrence)
Ensures the root node has pid = -1

The method performs two main passes:

First pass: Creates a mapping from old node IDs to new sequential IDs
Second pass: Updates all parent IDs using the new mapping

Note: This method assumes that node IDs within each trunk have NOT been reset to start at 1. If the trunks have already been renumbered, use the other overload that takes a trunkParentMap.; The resulting node IDs will be sequential and unique across all trunks.

See also: assembleTrunks(const std::map<int, std::map<int, SWCNode>>&, const std::map<int,int>&) for the version that handles parent-child relationships between trunks

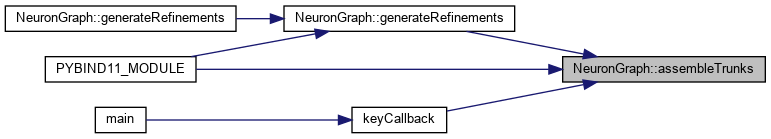

Here is the caller graph for this function:

◆ cubicSplineResampleTrunk()

std::map< int, SWCNode > NeuronGraph::cubicSplineResampleTrunk	(	const std::map< int, SWCNode > &	trunk,
		double &	delta
	)		const

Resamples a single trunk using cubic spline interpolation.

Resamples a single trunk segment using cubic spline interpolation.

Parameters

[in]	trunk	The trunk to resample (map of node IDs to SWCNodes)
[in,out]	delta	Target spacing between resampled points (may be adjusted)

Returns: A new set of nodes representing the resampled trunk

Cubic spline interpolation generally produces smoother curves than linear interpolation, especially for coarsely sampled data.

Parameters

trunk	Map of node IDs to SWCNode objects representing the trunk to be resampled
delta	Target distance between consecutive nodes in the resampled trunk (in microns)

Returns: std::map<int, SWCNode> A new map of resampled nodes with sequential IDs

This method performs cubic spline resampling of a neuron trunk to achieve a smooth and uniform distribution of nodes along its length. It creates a smooth curve that passes through all original nodes and samples new points along this curve.

Key features:

Preserves the first and last nodes of the original trunk exactly
Fits natural cubic splines to x, y, and z coordinates separately
Parameterizes the spline by arc length for uniform sampling
Maintains the dominant node type throughout the resampled trunk
Handles 3D coordinates and radii with appropriate interpolation
Adjusts node IDs and parent IDs to maintain a valid tree structure

The algorithm works as follows:

Converts the input trunk to an ordered vector of nodes
Determines the dominant node type in the trunk
Fits natural cubic splines to x, y, and z coordinates
Parameterizes the spline by arc length
Samples new points at approximately 'delta' intervals along the curve
Ensures the first and last nodes match the original exactly

Note: This method produces smoother results than linear interpolation but is more computationally intensive; The actual spacing may vary slightly to ensure the curve is sampled properly; If the input trunk has fewer than 4 nodes, falls back to linear interpolation

See also: allCubicSplineResampledTrunks() for resampling multiple trunks; linearSplineResampleTrunk() for a faster but less smooth alternative

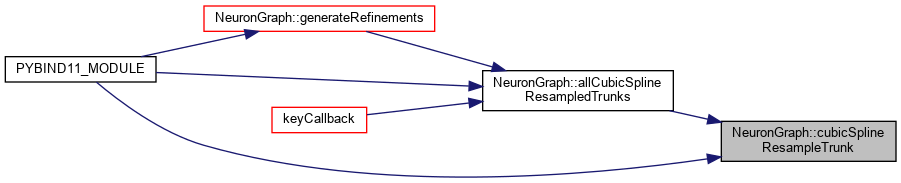

Here is the caller graph for this function:

◆ generateRefinements() [1/2]

std::map< int, std::map< int, SWCNode > > NeuronGraph::generateRefinements	(	const std::map< int, SWCNode > &	nodeSet,
		double &	delta,
		int &	N,
		std::string &	method
	)

Generates multiple levels of refined neuron morphologies.

Generates multiple levels of mesh refinements for a neuron morphology.

Parameters

[in]	nodeSet	The set of nodes to refine
[in,out]	delta	Initial spacing parameter for refinement
[in,out]	N	Number of refinement levels to generate
[in,out]	method	Refinement method ("linear" or "cubic")

Returns: A map where keys are refinement levels and values are the refined node sets

This method generates a series of increasingly refined versions of the input neuron morphology by repeatedly applying the specified interpolation method.

Parameters

nodeSet	Map of SWC nodes representing the input neuron morphology
delta	Initial target spacing between nodes (in microns). This value is halved in each refinement level.
N	Number of refinement levels to generate
method	Interpolation method to use ("linear" or "cubic")

Returns: std::map<int, std::map<int, SWCNode>> Map where each key is the refinement level (0 to N-1) and the value is the resampled neuron at that refinement level

This method creates a series of increasingly refined versions of the input neuron morphology. Each refinement level approximately halves the spacing between nodes, providing a multi-resolution representation of the neuron that can be used for progressive rendering or adaptive meshing.

Key features:

Supports both linear and cubic spline interpolation methods
Progressively refines the mesh by halving 'delta' at each level
Maintains topological relationships between nodes
Preserves branch points and overall neuron structure
Returns all refinement levels for comparison or progressive loading

The refinement process works as follows:

Extracts trunk segments from the input neuron
Determines parent-child relationships between trunks
For each refinement level i (0 to N-1): a. Resamples all trunks using the specified method with spacing delta/(2^i) b. Reassembles the neuron from the resampled trunks c. Stores the result in the output map

Note: The input 'delta' parameter will be modified during execution (halved at each level); If an unsupported method is provided, falls back to linear interpolation; The first refinement level (i=0) uses the initial delta value

See also: allLinearSplineResampledTrunks() for the linear interpolation implementation; allCubicSplineResampledTrunks() for the cubic spline implementation

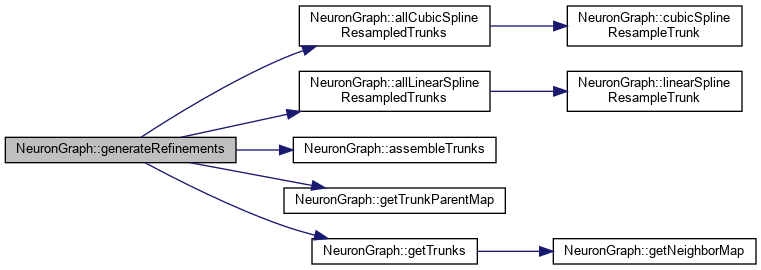

Here is the call graph for this function:

Here is the caller graph for this function:

◆ generateRefinements() [2/2]

std::map<int, std::map<int,SWCNode> > NeuronGraph::generateRefinements	(	double &	delta,
		int &	N,
		std::string &	method
	)

inline

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. Generates refinements for the current graph's nodes

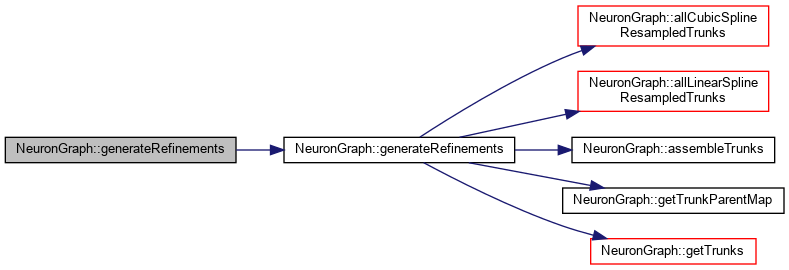

Here is the call graph for this function:

◆ getNeighborMap()

std::map< int, std::vector< int > > NeuronGraph::getNeighborMap ( const std::map< int, SWCNode > & nodeSet ) const

private

Builds a neighbor map from a set of nodes.

Builds an adjacency list representing the connectivity between nodes in a neuron morphology.

Parameters

[in] nodeSet Set of nodes to process

Returns: Map where each key is a node ID and the value is a list of neighbor node IDs

This helper function constructs an adjacency list representation of the graph from a set of nodes by establishing parent-child relationships.

Parameters

nodeSet Map of SWC nodes where key is node ID and value is the SWCNode object

Returns: std::map<int, std::vector<int>> where each key is a node ID and value is a vector of its neighbor node IDs

This method constructs an undirected graph representation of the neuron morphology by creating neighbor relationships between connected nodes. For each node in the input set, it establishes bidirectional connections between the node and its parent (if the parent exists in the nodeSet).

The resulting neighbor map allows efficient traversal of the neuron's topology in any direction, which is essential for various analysis and processing tasks such as trunk extraction and topological sorting.

Note: Only nodes present in the input nodeSet are included in the neighbor map; The method creates bidirectional edges (A→B and B→A) for each parent-child relationship

See also: getTrunks() for the primary use of this method; topologicalSort() for another application of the neighbor map

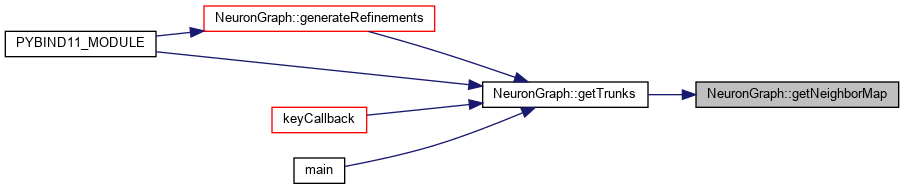

Here is the caller graph for this function:

◆ getNodes()

auto NeuronGraph::getNodes ( )

inline

Returns a copy of all nodes in the graph.

Returns: A map of node IDs to SWCNode objects

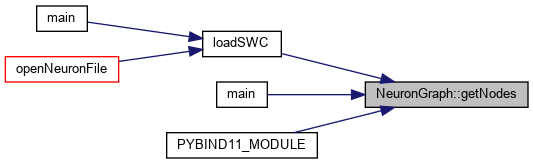

Here is the caller graph for this function:

◆ getTrunkParentMap()

std::map< int, int > NeuronGraph::getTrunkParentMap	(	const std::map< int, SWCNode > &	nodeSet,
		const std::map< int, std::map< int, SWCNode >> &	trunkNodeSets
	)		const

Creates a mapping from trunk IDs to their parent trunk IDs.

Determines the parent-child relationships between trunk segments in a neuron morphology.

Parameters

[in]	nodeSet	The original set of nodes
[in]	trunkNodeSets	Map of trunk IDs to their nodes

Returns: A map where keys are trunk IDs and values are parent trunk IDs (-1 for root trunks)

Parameters

nodeSet	Original map of all SWC nodes in the neuron
trunkNodeSets	Map of trunk segments where each key is a trunk ID and value is a map of node IDs to SWCNodes

Returns: std::map<int, int> Map where each key is a trunk ID and value is its parent trunk ID (-1 for root trunks)

This method analyzes the connectivity between trunk segments to establish a hierarchical parent-child relationship between them. It determines which trunk connects to which by examining the parent-child relationships of the nodes at the connection points between trunks.

The algorithm works in two main phases:

Builds a reverse lookup (node ID → trunk ID) to quickly find which trunk a node belongs to
For each trunk, examines the parent of its first node to determine its parent trunk

Key assumptions:

The first node in each trunk's node map is the rootward (proximal) end of the trunk
Trunks are topologically sorted with parent nodes appearing before their children
The input trunks have already been extracted and may have been processed (e.g., resampled)

Note: A return value of -1 indicates a root trunk (no parent); If a trunk's first node has no parent or its parent is not in any trunk, it's considered a root trunk

See also: getTrunks() for how trunks are initially extracted; assembleTrunks() for how this parent information is used in reconstruction

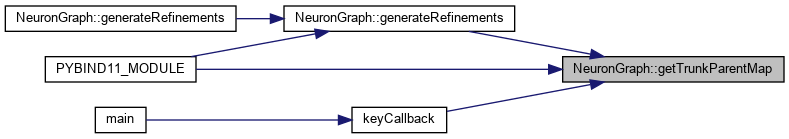

Here is the caller graph for this function:

◆ getTrunks() [1/2]

std::map<int,std::map<int,SWCNode> > NeuronGraph::getTrunks ( bool resetIndex = false ) const

inline

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. Extracts trunk segments from the current graph

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getTrunks() [2/2]

std::map< int, std::map< int, SWCNode > > NeuronGraph::getTrunks	(	const std::map< int, SWCNode > &	nodeSet,
		bool	resetIndex = `false`
	)		const

Extracts trunk segments from a neuron morphology.

Parameters

[in]	nodeSet	The set of nodes to process
[in]	resetIndex	If true, renumbers node IDs sequentially

Returns: A map where each key is a trunk ID and the value is a map of node IDs to SWCNodes

A trunk is defined as a linear segment between branch points or between a branch point and a leaf node.

Parameters

nodeSet	Map of SWC nodes where key is node ID and value is the SWCNode object
resetIndex	If true, renumbers node IDs sequentially within each trunk (default: false)

Returns: std::map<int, std::map<int, SWCNode>> where each key is a trunk ID and value is a map of node IDs to SWCNodes in that trunk

This method identifies and extracts linear segments (trunks) from a neuron morphology. A trunk is defined as a path between:

Two branch points (nodes with degree > 2)
A branch point and an endpoint (node with degree 1)
The root node and the first branch point

The algorithm works as follows:

Builds a neighbor map to represent the neuron's connectivity
Identifies branch points (nodes with >2 neighbors)
For each branch point, traverses to connected nodes to extract linear segments
Uses canonical representation to avoid duplicate trunks
Optionally renumbers node IDs sequentially within each trunk

The method handles both directed and undirected traversal of the neuron morphology.

Note: When resetIndex is true, node IDs within each trunk will be renumbered sequentially starting from 1, with parent IDs adjusted accordingly. The first node in each trunk will have pid = -1.; The method uses a canonical representation to ensure each trunk is only included once, regardless of traversal direction.

See also: getNeighborMap() for the graph representation used internally; getTrunkParentMap() for establishing relationships between trunks

Here is the call graph for this function:

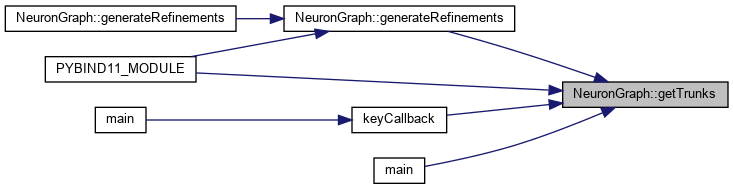

Here is the caller graph for this function:

◆ hasSomaSegment() [1/2]

bool NeuronGraph::hasSomaSegment ( ) const

inline

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. Checks if the current graph contains a soma segment

Here is the call graph for this function:

Here is the caller graph for this function:

◆ hasSomaSegment() [2/2]

bool NeuronGraph::hasSomaSegment ( const std::map< int, SWCNode > & nodeSet ) const

Checks if the node set contains a soma segment.

Checks if the neuron has multiple soma nodes (soma segment)

Parameters

[in] nodeSet The set of nodes to check

Returns: true if a soma segment is found, false otherwise

A soma segment is defined as multiple connected nodes of type 1 (soma).

Parameters

nodeSet Map of SWC nodes to check

Returns: true if multiple soma nodes exist, false otherwise

This method detects the presence of soma segments, which occur when multiple nodes have type 1 (soma). In proper neuron morphology, there should be exactly one soma node. Multiple soma nodes can cause issues in analysis and mesh generation.

The method uses early exit optimization - it returns true as soon as a second soma node is found, avoiding unnecessary iterations.

Note: Soma nodes are identified by type == 1 in SWC format; This is used in preprocessing to clean up neuron data

See also: preprocess() for automatic soma segment removal; removeSomaSegment() for soma segment correction

◆ isSomaMissing() [1/2]

bool NeuronGraph::isSomaMissing ( ) const

inline

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. Checks if the current graph is missing a soma

Here is the call graph for this function:

Here is the caller graph for this function:

◆ isSomaMissing() [2/2]

bool NeuronGraph::isSomaMissing ( const std::map< int, SWCNode > & nodeSet ) const

Checks if the node set is missing a soma.

Checks if the neuron is missing a soma node.

Parameters

[in] nodeSet The set of nodes to check

Returns: true if no soma is present, false otherwise

This is the inverse of hasSomaSegment() and is provided for readability.

Parameters

nodeSet Map of SWC nodes to check

Returns: true if no soma node exists, false if soma is present

This method determines whether the neuron morphology lacks a soma (cell body). Every valid neuron should have exactly one soma node of type 1. Missing somas can occur in incomplete reconstructions or when dealing with neuron fragments.

The method uses early exit - it returns false as soon as any soma node is found, making it efficient for large neuron datasets.

Note: Soma nodes are identified by type == 1 in SWC format; This is used in preprocessing to add missing somas

See also: preprocess() for automatic soma addition; setSoma() for adding missing soma nodes

◆ isTopologicallySorted() [1/2]

bool NeuronGraph::isTopologicallySorted ( ) const

inline

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. Checks if the current graph's nodes are topologically sorted

Here is the call graph for this function:

Here is the caller graph for this function:

◆ isTopologicallySorted() [2/2]

bool NeuronGraph::isTopologicallySorted ( const std::map< int, SWCNode > & nodeSet ) const

Checks if a set of nodes is topologically sorted.

Checks if the neuron nodes are topologically sorted.

Parameters

[in] nodeSet The set of nodes to check

Returns: true if the nodes are topologically sorted, false otherwise

A set of nodes is considered topologically sorted if for every node, its parent ID is less than its own ID (i.e., parent nodes come before their children in the sequence).

Parameters

nodeSet Map of SWC nodes to check

Returns: true if nodes are topologically sorted, false otherwise

This method verifies that all parent nodes have IDs smaller than their children nodes (parent_id < child_id). This property is important for many neuron analysis algorithms and ensures proper tree traversal.

A topologically sorted neuron means that when nodes are processed in ID order, all parent nodes are encountered before their children.

Note: Root nodes (pid == -1) are always considered valid; The commented debug output can be uncommented for troubleshooting

See also: SWCNode structure for node ID and parent ID fields

◆ linearSplineResampleTrunk()

std::map< int, SWCNode > NeuronGraph::linearSplineResampleTrunk	(	const std::map< int, SWCNode > &	trunk,
		double &	delta
	)		const

Resamples a single trunk using linear interpolation.

Resamples a single trunk segment using linear interpolation.

Parameters

[in]	trunk	The trunk to resample (map of node IDs to SWCNodes)
[in,out]	delta	Target spacing between resampled points (may be adjusted)

Returns: A new set of nodes representing the resampled trunk

Parameters

trunk	Map of node IDs to SWCNode objects representing the trunk to be resampled
delta	Target distance between consecutive nodes in the resampled trunk (in microns)

Returns: std::map<int, SWCNode> A new map of resampled nodes with sequential IDs

This method performs linear resampling of a neuron trunk to achieve a more uniform distribution of nodes along its length. It creates a piecewise linear approximation of the original trunk with nodes spaced approximately 'delta' units apart.

Key features:

Preserves the first and last nodes of the original trunk exactly
Uses linear interpolation between existing nodes
Maintains the dominant node type throughout the resampled trunk
Adjusts node IDs and parent IDs to maintain a valid tree structure
Handles 3D coordinates and radii

The algorithm works as follows:

Converts the input trunk to an ordered vector of nodes
Determines the dominant node type in the trunk
Calculates the total arc length of the trunk
Determines the number of segments needed based on 'delta'
Performs linear interpolation between existing nodes to create new points
Ensures the first and last nodes match the original exactly

Note: The actual spacing may vary slightly to ensure the first and last nodes are preserved exactly; If the input trunk has fewer than 2 nodes, returns an empty map; The minimum number of points in the resampled trunk is 4 to ensure reasonable shape representation

See also: allLinearSplineResampledTrunks() for resampling multiple trunks; cubicSplineResampleTrunk() for a smoother but more computationally intensive alternative

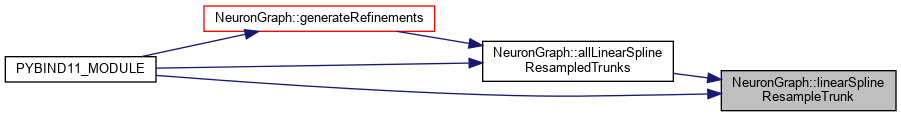

Here is the caller graph for this function:

◆ numberOfEdges()

int NeuronGraph::numberOfEdges ( )

inline

Returns the number of edges in the graph.

Returns: The total number of edges

Here is the caller graph for this function:

◆ numberOfNodes()

int NeuronGraph::numberOfNodes ( )

inline

Returns the number of nodes in the graph.

Returns: The total number of nodes

Here is the caller graph for this function:

◆ preprocess()

std::map< int, SWCNode > NeuronGraph::preprocess ( const std::map< int, SWCNode > & nodeSet ) const

Applies standard preprocessing steps to a set of nodes.

Preprocesses a node set to ensure proper soma properties.

Parameters

[in] nodeSet The set of nodes to preprocess

Returns: A new set of preprocessed nodes

Preprocessing includes:

Topological sorting
Soma segment handling
Soma addition if missing

Parameters

nodeSet The input map of SWC nodes to preprocess

Returns: A preprocessed map of SWC nodes with corrected soma properties

This method performs essential preprocessing steps on neuron data:

Checks if soma is missing and adds one if necessary
Removes soma segments if multiple soma nodes exist

The preprocessing ensures that the neuron has exactly one soma node, which is critical for proper neuron analysis and mesh generation.

See also: isSomaMissing(const std::map<int, SWCNode>& nodeSet); hasSomaSegment(const std::map<int, SWCNode>& nodeSet); setSoma(const std::map<int, SWCNode>& nodeSet); removeSomaSegment(const std::map<int, SWCNode>& nodeSet)

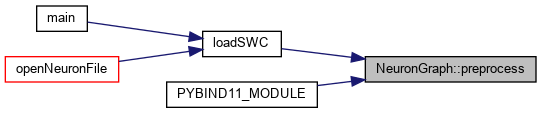

Here is the caller graph for this function:

◆ readFromFile()

void NeuronGraph::readFromFile ( const std::string & filename )

Reads neuron data from an SWC file.

Reads neuron morphology data from an SWC format file.

Parameters

[in] filename Path to the SWC file to read

Exceptions

std::runtime_error If the file cannot be opened or parsed

See also: http://www.neuronland.org/NLMorphologyConverter/MorphologyFormats/SWC/Spec.html

Parameters

filename Path to the SWC file to read

This method parses an SWC (Standardized Morphology Format) file and populates the graph with neuron nodes. The SWC format contains one node per line with the following columns: ID, type, x, y, z, radius, parent_ID.

The parser handles:

Comment lines (starting with #)
Inline comments
Whitespace normalization
Tab-to-space conversion
Error reporting for malformed lines

Note: Clears existing graph data before loading new data; Prints summary information upon successful completion

Warning: If file cannot be opened, an error message is printed and method returns

See also: addNode(const SWCNode& node) for individual node processing

Here is the caller graph for this function:

◆ readFromFileUGX()

void NeuronGraph::readFromFileUGX ( const std::string & filename )

Reads neuron data from a UGX file.

Reads neuron morphology data from a UGX file.

Parameters

[in] filename Path to the UGX file to read

Exceptions

std::runtime_error If the file cannot be opened or parsed

Note: UGX is an XML-based format used by the UG4 simulation framework

Parameters

filename Path to the input UGX file to read

This method imports neuron morphology data from a UGX file and populates the internal data structures of the NeuronGraph class. It handles the conversion from the UGX format to the internal SWC-based representation.

The method processes the following UGX elements:

Vertex coordinates (3D positions)
Edge connectivity between nodes
Vertex attributes (diameters, types, etc.)
Subset information for different neuron components

The import process includes:

Parsing the XML structure of the UGX file
Extracting vertex coordinates and creating SWC nodes
Reconstructing parent-child relationships from edges
Loading additional attributes like diameters and node types
Validating the imported morphology

Note: The method clears any existing neuron data before importing; If the file cannot be read or is malformed, error messages are printed to stderr; The method attempts to map UGX subsets back to SWC node types when possible

See also: writeToFileUGX() for the corresponding export functionality; https://github.com/UG4/ug4 for more information about the UGX format

Here is the caller graph for this function:

◆ readFromFileUGXorSWC()

void NeuronGraph::readFromFileUGXorSWC ( const std::string & filename )

Reads a neuron file, automatically detecting the format.

Automatically detects file format and reads neuron data.

Parameters

[in] filename Path to the neuron file (SWC or UGX)

This method examines the file extension to determine whether to use readFromFile() or readFromFileUGX().

Exceptions

std::runtime_error If the file format is not supported

Parameters

filename Path to the input file (SWC or UGX format)

This method automatically determines the file format based on the file extension and calls the appropriate reader method:

.swc files are read using readFromFile()
.ugx files are read using readFromFileUGX()

This provides a convenient unified interface for loading neuron data regardless of the input format.

Warning: Prints error message for unsupported file extensions

See also: readFromFile(const std::string& filename) for SWC format; readFromFileUGX(const std::string& filename) for UGX format

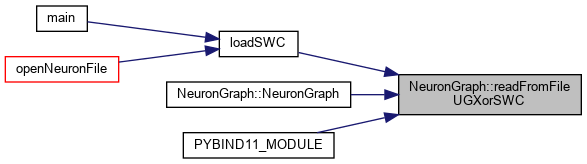

Here is the caller graph for this function:

◆ removeSomaSegment() [1/2]

std::map<int, SWCNode> NeuronGraph::removeSomaSegment ( ) const

inline

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. Removes the soma segment from the current graph

Here is the call graph for this function:

Here is the caller graph for this function:

◆ removeSomaSegment() [2/2]

std::map< int, SWCNode > NeuronGraph::removeSomaSegment ( const std::map< int, SWCNode > & inputNodes ) const

Removes the soma segment from a set of nodes.

Removes multiple soma nodes and replaces them with a single averaged soma.

Parameters

[in] inputNodes The set of nodes to process

Returns: A new set of nodes with the soma segment removed

This method identifies and removes the soma segment (multiple connected type 1 nodes) and replaces it with a single representative soma node at the average position.

Parameters

inputNodes The input map of SWC nodes containing multiple soma nodes

Returns: A new map of SWC nodes with a single soma node at ID 1

This method processes neuron morphologies that have multiple soma nodes (soma segments) and consolidates them into a single soma node. The process involves:

Identifying all soma nodes (type == 1)
Computing the average position and radius of all soma nodes
Creating a new soma node with ID 1 at the averaged location
Reassigning all non-soma nodes with new sequential IDs starting from 2
Updating parent-child relationships to connect to the new soma
Ensuring topological sorting of the result

Note: If no soma nodes are found, returns the input unchanged; The resulting soma always has ID 1 and parent ID -1 (root); All nodes originally connected to any soma will be connected to the new soma

See also: hasSomaSegment() to detect if soma segments exist; topologicalSort() for ensuring proper node ordering

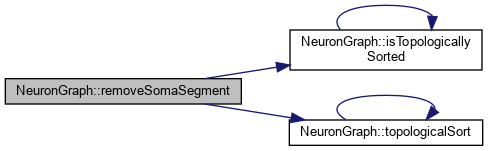

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setNodes()

void NeuronGraph::setNodes ( const std::map< int, SWCNode > & nodeSet )

Replaces the current set of nodes in the graph.

Sets the nodes of the graph, replacing any existing nodes.

Parameters

[in] nodeSet New set of nodes to use

This method clears the current graph and rebuilds it using the provided nodes. It automatically updates the internal adjacency list.

Parameters

nodeSet A map containing SWC nodes indexed by their IDs

This method clears the current graph data and repopulates it with the provided node set. It rebuilds all parent-child relationships from scratch.

Note: This is equivalent to reconstructing the graph with new data

See also: addNode(const SWCNode& node)

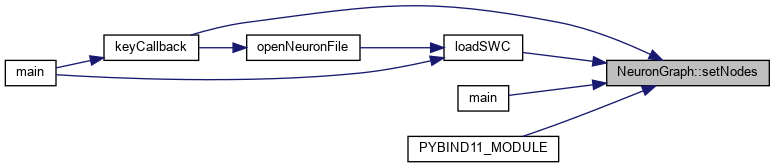

Here is the caller graph for this function:

◆ setSoma() [1/2]

std::map<int, SWCNode> NeuronGraph::setSoma ( ) const

inline

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. Adds a soma node to the current graph if none exists

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setSoma() [2/2]

std::map< int, SWCNode > NeuronGraph::setSoma ( const std::map< int, SWCNode > & nodeSet ) const

Adds a soma node if none exists.

Assigns a soma node to a neuron morphology that lacks one.

Parameters

[in] nodeSet The set of nodes to process

Returns: A new set of nodes with a soma node added if needed

If no soma (type 1) node is present, this method adds one at the root position of the neuron tree.

Parameters

nodeSet The input map of SWC nodes missing a soma

Returns: A new map of SWC nodes with a soma node assigned

This method addresses neuron morphologies that are missing a soma (cell body) by converting the first root node found (pid == -1) into a soma node (type = 1).

The method follows this logic:

First checks if a soma already exists using isSomaMissing()
If soma is present, returns the input unchanged
If soma is missing, searches for the first root node (pid == -1)
Converts the root node's type to 1 (soma type)
Prints a confirmation message with the assigned node ID

This operation is essential for:

Ensuring every neuron has exactly one soma for proper analysis
Correcting incomplete neuron reconstructions
Preparing neuron data for mesh generation algorithms
Maintaining consistency with neuron morphology standards

Note: If no root node is found, prints a warning and returns input unchanged; Only the first root node encountered is converted to soma; The node's position and other properties remain unchanged

Warning: If multiple root nodes exist, only the first one becomes the soma

See also: isSomaMissing() to detect if soma assignment is needed; preprocess() which automatically calls this method when needed

Here is the call graph for this function:

◆ splitEdges() [1/2]

std::map<int, SWCNode> NeuronGraph::splitEdges ( ) const

inline

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. Splits all edges in the current graph

Here is the call graph for this function:

Here is the caller graph for this function:

◆ splitEdges() [2/2]

std::map< int, SWCNode > NeuronGraph::splitEdges ( const std::map< int, SWCNode > & nodeSet ) const

Splits all edges in the graph by inserting midpoint nodes.

Splits all edges in the neuron by inserting midpoint nodes.

Parameters

[in] nodeSet The set of nodes to process

Returns: A new set of nodes with edges split

This method inserts a new node at the midpoint of each edge, effectively doubling the number of edges while preserving the overall shape of the neuron.

Parameters

nodeSet The input map of SWC nodes to process

Returns: A new map of SWC nodes with midpoint nodes inserted on all edges

This method performs edge subdivision by inserting a new node at the midpoint of every parent-child edge in the neuron morphology. The process involves:

Creating a midpoint node for each parent-child relationship
Positioning the midpoint at the average coordinates of parent and child
Setting the midpoint radius as the average of parent and child radii
Updating the topology so child nodes connect through their midpoints
Ensuring topological sorting of the final result

This operation effectively doubles the resolution of the neuron morphology, which is useful for:

Mesh refinement operations
Improved geometric accuracy in simulations
Smoother interpolation between neuron segments

Note: New node IDs are assigned sequentially starting from the highest existing ID + 1; Midpoint nodes inherit the type of their child node; Root nodes (pid == -1) are not affected by this operation

See also: splitEdgesN() for performing multiple iterations of edge splitting; topologicalSort() for ensuring proper node ordering

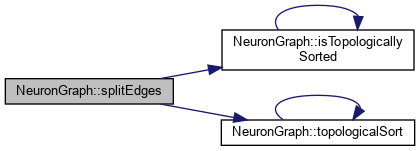

Here is the call graph for this function:

Here is the caller graph for this function:

◆ splitEdgesN() [1/2]

std::vector< std::map< int, SWCNode > > NeuronGraph::splitEdgesN	(	const std::map< int, SWCNode > &	nodeSet,
		int	N
	)		const

Applies edge splitting N times recursively.

Performs N iterations of edge splitting on the neuron morphology.

Parameters

[in]	nodeSet	The set of nodes to process
[in]	N	Number of times to split the edges

Returns: A vector of node sets, where each element represents the result of i+1 splits (i = 0 to N-1)

Parameters

nodeSet	The input map of SWC nodes to process
N	The number of edge splitting iterations to perform

Returns: A vector containing the node sets after each iteration of splitting

This method applies the splitEdges() operation N times in sequence, where each iteration uses the result of the previous iteration as input. This creates progressively finer subdivisions of the neuron morphology.

The returned vector contains N maps, where:

splits[0] contains the result after 1 iteration
splits[1] contains the result after 2 iterations
splits[N-1] contains the result after N iterations

After N iterations, the number of nodes grows exponentially, with each iteration approximately doubling the number of edges (and thus nodes).

Use cases:

Progressive mesh refinement for adaptive simulations
Creating multiple levels of detail for the same neuron
Analyzing convergence properties of numerical methods

Note: Each iteration significantly increases the number of nodes; Memory usage grows exponentially with N; Consider memory constraints when choosing large values of N

See also: splitEdges() for single iteration edge splitting

Here is the call graph for this function:

Here is the caller graph for this function:

◆ splitEdgesN() [2/2]

std::vector<std::map<int, SWCNode> > NeuronGraph::splitEdgesN ( int N ) const

inline

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. Applies edge splitting N times to the current graph

Here is the call graph for this function:

Here is the caller graph for this function:

◆ swc2ugx()

void NeuronGraph::swc2ugx	(	const std::string &	inputfile,
		const std::string &	outputfile
	)

Converts an SWC file to UGX format.

Parameters

[in]	inputfile	Path to the input SWC file
[in]	outputfile	Path for the output UGX file

This is a convenience method that combines readFromFile() and writeToFileUGX().

Parameters

inputfile	Path to the input SWC file
outputfile	Path to the output UGX file

This static utility method provides convenient SWC to UGX format conversion. It creates a temporary NeuronGraph instance, loads the SWC data, and exports it in UGX format suitable for mesh generation and finite element analysis.

Note: This is a static method that can be called without a NeuronGraph instance

See also: ugx2swc(const std::string& inputfile, const std::string& outputfile) for reverse conversion; writeToFileUGX() for UGX output functionality

Here is the caller graph for this function:

◆ topologicalSort() [1/2]

std::map<int, SWCNode> NeuronGraph::topologicalSort ( ) const

inline

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. Sorts the current graph's nodes topologically

Here is the call graph for this function:

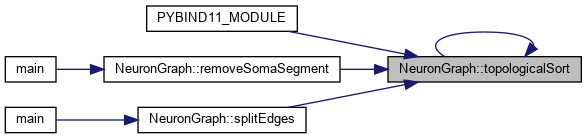

Here is the caller graph for this function:

◆ topologicalSort() [2/2]

std::map< int, SWCNode > NeuronGraph::topologicalSort ( const std::map< int, SWCNode > & nodeSet ) const

Sorts nodes topologically using Kahn's algorithm.

Performs topological sorting of neuron nodes to ensure proper parent-child ordering.

Parameters

[in] nodeSet The set of nodes to sort

Returns: A new map of nodes sorted in topological order

This method ensures that parent nodes always appear before their children in the resulting sequence, which is important for many processing steps.

Note: If the graph contains cycles, the behavior is undefined.

See also: https://en.wikipedia.org/wiki/Topological_sorting#Kahn's_algorithm

Parameters

nodeSet The input map of SWC nodes to sort

Returns: A new map of SWC nodes with reassigned IDs in topological order

This method implements Kahn's algorithm for topological sorting to ensure that all parent nodes have smaller IDs than their children. The algorithm:

Builds an adjacency list and calculates in-degrees for all nodes
Starts with nodes having zero in-degree (root nodes)
Processes nodes in breadth-first order, updating in-degrees
Reassigns node IDs sequentially (1, 2, 3, ...) based on topological order
Updates parent IDs to maintain correct relationships

Topological sorting is essential for:

Ensuring proper tree traversal algorithms work correctly
Maintaining consistency in neuron analysis operations
Enabling efficient parent-to-child processing
Supporting mesh generation algorithms that rely on ordered traversal

The resulting neuron will have:

Root nodes (soma) with the smallest IDs
All parent nodes having IDs smaller than their children
Sequential ID numbering starting from 1

Note: This method creates entirely new node IDs while preserving topology; The original node IDs are completely replaced; Parent-child relationships are preserved but with new ID mappings

See also: isTopologicallySorted() to check if sorting is needed

◆ ugx2swc()

void NeuronGraph::ugx2swc	(	const std::string &	inputfile,
		const std::string &	outputfile
	)

Converts a UGX file to SWC format.

Parameters

[in]	inputfile	Path to the input UGX file
[in]	outputfile	Path for the output SWC file

This is a convenience method that combines readFromFileUGX() and writeToFile().

Parameters

inputfile	Path to the input UGX file
outputfile	Path to the output SWC file

This static utility method provides convenient UGX to SWC format conversion. It creates a temporary NeuronGraph instance, loads the UGX data, and exports it in standard SWC format for compatibility with neuron analysis tools.

Note: This is a static method that can be called without a NeuronGraph instance

See also: swc2ugx(const std::string& inputfile, const std::string& outputfile) for reverse conversion; writeToFile() for SWC output functionality

Here is the caller graph for this function:

◆ writeToFile() [1/2]

void NeuronGraph::writeToFile	(	const std::map< int, SWCNode > &	nodeSet,
		const std::string &	filename
	)

Writes a set of nodes to an SWC file.

Writes neuron morphology data to an SWC format file.

Parameters

[in]	nodeSet	The nodes to write
[in]	filename	Path to the output file

Note: The file will be overwritten if it already exists

Parameters

nodeSet	Map of SWC nodes to write to file
filename	Output file path for the SWC data

This method exports neuron morphology data in the standard SWC format. Nodes are written in sorted order by ID to ensure consistent output. Each line contains: ID, type, x, y, z, radius, parent_ID.

The output format is compatible with standard neuron analysis tools and can be read back using readFromFile().

Note: If output file cannot be opened, an error message is printed and method returns; Prints confirmation message upon successful completion

See also: readFromFile(const std::string& filename) for reading SWC files

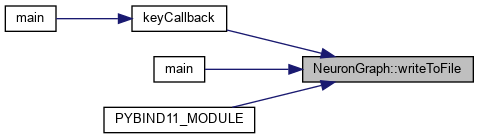

Here is the caller graph for this function:

◆ writeToFile() [2/2]

void NeuronGraph::writeToFile ( const std::string & filename )

inline

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. Writes the current graph's nodes to an SWC file

Here is the call graph for this function:

Here is the caller graph for this function:

◆ writeToFileUGX() [1/2]

void NeuronGraph::writeToFileUGX	(	const std::map< int, SWCNode > &	nodeSet,
		const std::string &	filename
	)

Writes a set of nodes to a UGX file.

Writes neuron morphology data to a UGX file format.

Parameters

[in]	nodeSet	The nodes to write
[in]	filename	Path to the output file

Note: The file will be overwritten if it already exists

Parameters

nodeSet	Map of SWC nodes to be written, where key is node ID and value is SWCNode object
filename	Path to the output UGX file

This method converts the internal neuron representation into the UGX file format, which is compatible with the UG4 simulation framework. The UGX format is an XML-based format that can represent complex graph structures with additional attributes.

The output UGX file includes:

3D vertex coordinates for each node
Edge connectivity based on parent-child relationships
Node diameters as vertex attributes
Subset definitions for different neuron components (soma, axon, dendrites, etc.)

The method performs the following steps:

Extracts node positions, diameters, and connectivity from the input node set
Creates a mapping between node IDs and internal indices
Organizes nodes into subsets based on their type (soma, axon, dendrites, etc.)
Constructs the UGX XML structure with proper formatting
Writes the XML data to the specified file

Note: The method preserves the 3D structure and topological relationships of the neuron; If the file cannot be written, an error message is printed to stderr; The method automatically handles different SWC node types (soma=1, axon=2, etc.)

See also: readFromFileUGX() for the corresponding import functionality; https://github.com/UG4/ug4 for more information about the UGX format

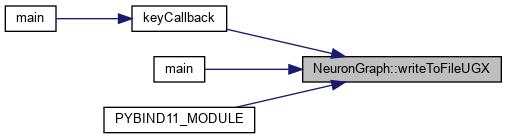

Here is the caller graph for this function:

◆ writeToFileUGX() [2/2]

void NeuronGraph::writeToFileUGX ( const std::string & filename )

inline

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. Writes the current graph's nodes to a UGX file

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ edges

std::map<int, std::vector<int> > NeuronGraph::edges

private

Adjacency list representation of the neuron graph.

◆ nodes

std::map<int,SWCNode> NeuronGraph::nodes

private

Map of node IDs to SWCNode objects.

The documentation for this class was generated from the following files:

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ NeuronGraph() [1/3]

◆ NeuronGraph() [2/3]

◆ NeuronGraph() [3/3]

Member Function Documentation

◆ addNode()

◆ allCubicSplineResampledTrunks()

◆ allLinearSplineResampledTrunks()

◆ assembleTrunks() [1/2]

◆ assembleTrunks() [2/2]

◆ cubicSplineResampleTrunk()

◆ generateRefinements() [1/2]

◆ generateRefinements() [2/2]

◆ getNeighborMap()

◆ getNodes()

◆ getTrunkParentMap()

◆ getTrunks() [1/2]

◆ getTrunks() [2/2]

◆ hasSomaSegment() [1/2]

◆ hasSomaSegment() [2/2]

◆ isSomaMissing() [1/2]

◆ isSomaMissing() [2/2]

◆ isTopologicallySorted() [1/2]

◆ isTopologicallySorted() [2/2]

◆ linearSplineResampleTrunk()

◆ numberOfEdges()

◆ numberOfNodes()

◆ preprocess()

◆ readFromFile()

◆ readFromFileUGX()

◆ readFromFileUGXorSWC()

◆ removeSomaSegment() [1/2]

◆ removeSomaSegment() [2/2]

◆ setNodes()

◆ setSoma() [1/2]

◆ setSoma() [2/2]

◆ splitEdges() [1/2]

◆ splitEdges() [2/2]

◆ splitEdgesN() [1/2]

◆ splitEdgesN() [2/2]

◆ swc2ugx()

◆ topologicalSort() [1/2]

◆ topologicalSort() [2/2]

◆ ugx2swc()

◆ writeToFile() [1/2]

◆ writeToFile() [2/2]

◆ writeToFileUGX() [1/2]

◆ writeToFileUGX() [2/2]

Member Data Documentation

◆ edges

◆ nodes
